Seeing the invisible: crystallography, MS and DOSY

How do you prove that a nanometer-sized object, invisible under an optical microscope, really has the claimed shape? Chemists combine three complementary techniques.

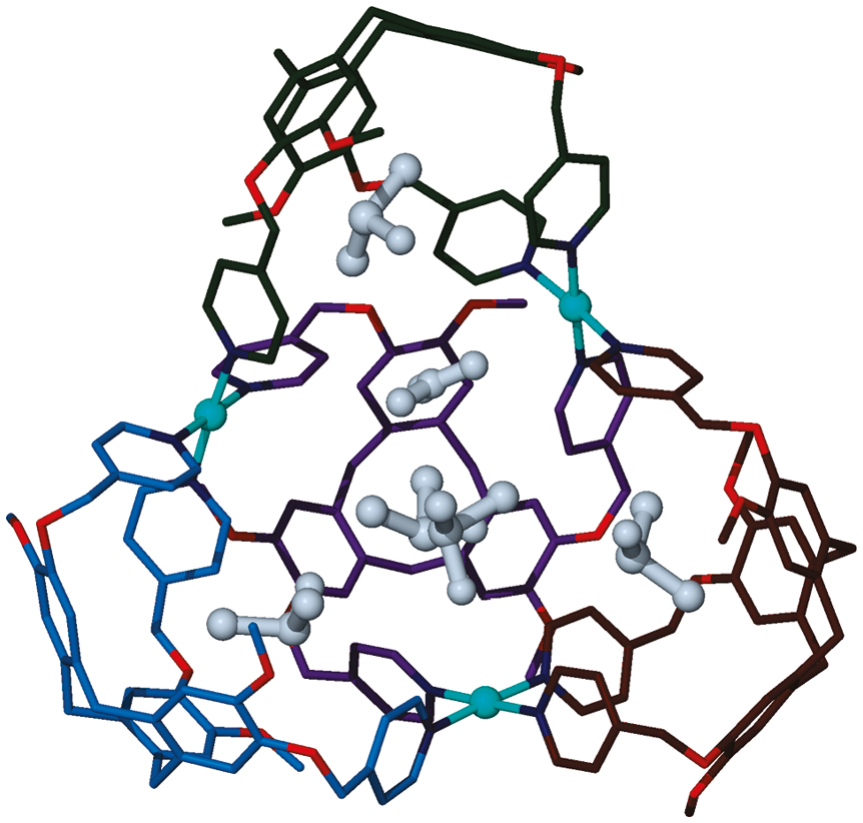

Figure 5. Crystal structure of the bowl [Pd₃(3)₄]⁶⁺. The four ligands are colored differently; the guest molecules (DMSO, nitrate) trapped in the cavity are shown as balls and sticks.

Single-crystal X-ray diffraction gives the position of every atom: it is the direct proof, the one that produced the image above. You can see the three Pd, the four intertwined ligands and the guests nestled at the heart of the bowl. But a crystal does not prove that the assembly survives in solution.

This is where electrospray mass spectrometry (ESI-MS) comes in. It weighs the intact species. An elegant trick lets you read their charge: the spacing between two neighboring isotopic peaks equals 1/n, where n is the charge. A peak at m/z 1646.9 assigned to {Pd₃(3)₄(NO₃)₄}²⁺ thus confirms the presence of the Pd₃L₄ bowl, while other fragments reveal an equilibrium between several species.

Finally, DOSY NMR measures the diffusion coefficient: the bigger a molecule, the more slowly it diffuses. Comparing the complex to the free ligand gives a ratio D(complex)/D(ligand) of about 0.54. An object that diffuses half as fast as its elementary building block must be a large assembly — consistent with a three-metal bowl.

Technique	What it measures	Detail
X-rays	exact atomic positions	(solid state)
ESI-MS	mass + charge	(isotopic spacing = 1/n)
DOSY NMR	size via diffusion	(D_complex / D_ligand ~ 0.54)

No technique is sufficient on its own; it is their convergence that constitutes the proof.
